Projekt Hausklima
Arduino > Pojects
/// ESP32 WiFi Libraries
#include <Arduino.h>
#include <stdint.h>
#include <WiFi.h> // Core
#include "ESPAsyncWebServer.h" //
#include "SPIFFS.h"
#include <Adafruit_ILI9341.h>
// Output Time Status Line
#include "StatusBar4Time.h" // my Own Component
#include <time.h>
#include "ESPAsyncWebServer.h"
#include "NTPProcedure.h" // my Own Component
// Font For Output
#include "Fonts/comic8pt.c"
#include <ArduinoOTA.h>
#include "soc/timer_group_struct.h"
#include "soc/timer_group_reg.h"
#include "GridOutput_Ver2.h" // my Own Component
#include <dht.h>
#include <DHT_U.h>
#include <thread>
#include <chrono>
#include <FirebaseESP32.h> // For Firebase Google Database
#include "WiFi_config.inc"
/// Script Credentials
const auto one_sec = std::chrono::minutes
{
1
};
WiFiUDP Udp;
DHT_Unified dht(DHTPIN, DHTTYPE);
Adafruit_ILI9341 tft = Adafruit_ILI9341(TFT_CS, TFT_DC, TFT_MOSI, TFT_CLK, TFT_RST, TFT_MISO);
FirebaseData firebaseData;
FirebaseJsonArray ArrayHumidity;
FirebaseJsonArray ArrayTemperature;
FirebaseJsonArray ArrayTimeStamp;
/*********************************************************************************
* @param Init
*********************************************************************************/
void InitDHTSensors();
GridOutputClass GridOutput;
StatusBar4TimeClass StatusBar;
AsyncWebServer server(80);
/*********************************************************************************
* @param prototypes
*********************************************************************************/
void LoopSetKlimaValue();
void AddData(rKlimaServer Value);
String HTML_Processor(const String& var);
void InitOTA();
void InitILI9341();
void feedTheDog();
void InitGridOutPut();
///-------------
void SetupNTP();
void InitTimer0();
void InitTimer1();
void IRAM_ATTR ontimer0();
void IRAM_ATTR ontimer1();
void connectToWiFi(const char * ssid, const char * pwd);
void WiFiEvent(system_event_id_t event);
void PrintText(uint16_t X, uint16_t Y, const char* Text, uint16_t Color, uint16_t EraseColor);
void SendFireBaseData( rKlimaServer Value);
void Send_UDP_Beacon2Client1(const char Msg[]);
void Send_UDP_Beacon2Client2(const char Msg[]);
void CheckWhatSender(String IPAdr,String Value);
/*********************************************************************************
* @brief counter_loop() Just a Test if this works
* @param none
* @return none
*********************************************************************************/
void counter_loop()
{
uint32_t counter = 0;
while(true) {
Serial.print("counter_loop: ");
Serial.println(counter);
std::this_thread::sleep_for(one_sec);
counter++;
}
}
/*********************************************************************************
* @brief blinker_loop() Just a Test if this works
* @param none
* @return none
*********************************************************************************/
void blinker_loop()
{
uint32_t counter = 0;
while(true) {
digitalWrite(LED_BUILTIN, HIGH);
Serial.print("blinker_loop (HIGH) counter: ");
Serial.println(counter);
std::this_thread::sleep_for(one_sec);
digitalWrite(LED_BUILTIN, LOW);
Serial.print("blinker_loop (LOW) counter: ");
Serial.println(counter);
std::this_thread::sleep_for(one_sec);
counter++;
}
}
std::thread counter_loop_thread(counter_loop);
std::thread blinker_loop_thread(blinker_loop);
/*********************************************************************************
* @brief setup()
* @param none
* @return none
*********************************************************************************/
void setup()
{
Serial.begin(115200);
InitILI9341();
InitGridOutPut();
tft.setFont(&_comic8pt_);
connectToWiFi(sBufferSSID, sBufferPASS);
// Give it 500 tries to connect
uint32_t Versuch = 0;
while ((bWiFiConnected == false) & (Versuch++ < 500))
{
Serial.printf(". %d", Versuch);
delay(50);
}
InitDHTSensors();
pinMode(LED_BUILTIN, OUTPUT);
SetupNTP();
InitOTA();
// Initialize SPIFFS
if(!SPIFFS.begin(true)){
Serial.println("An Error has occurred while mounting SPIFFS");
return;
}
dht.begin();
// Route for root / web page
server.on("/", HTTP_GET, [](AsyncWebServerRequest *request){
request->send(SPIFFS, "/index.html", String(), false, HTML_Processor);
});
// Route to load style.css file
server.on("/style.css", HTTP_GET, [](AsyncWebServerRequest *request){
request->send(SPIFFS, "/style.css", "text/css");
});
// Route to set GPIO to HIGH
server.on("/on", HTTP_GET, [](AsyncWebServerRequest *request){
digitalWrite(ledPin, HIGH);
request->send(SPIFFS, "/index.html", String(), false, HTML_Processor);
});
Udp.begin(UDP_PORT_Send_Receive);
StatusBar.init(&tft,ILI9341_AQUAMARINE, ILI9341_RED, ILI9341_RED,FullAll);
Firebase.begin(FIREBASE_HOST, FIREBASE_AUTH);
Firebase.reconnectWiFi(true);
InitTimer0(); // Init Timer0
InitTimer1(); // Init Timer1
ArrayHumidity.clear();
ArrayTemperature.clear();
ArrayTimeStamp.clear();
server.begin();
}
/*********************************************************************************
* @brief loop()
* @param none
* @return none
*********************************************************************************/
void loop()
{
feedTheDog();
if (bWiFiConnected)
{
ArduinoOTA.handle();
int packetSize = Udp.parsePacket();
if (packetSize)
{
Serial.printf("Received %d bytes from %s, port %d\n", packetSize, Udp.remoteIP().toString().c_str(), Udp.remotePort());
int len = Udp.read(Buffer, 40); // Importend if the Size is bigger than the Buffer the Stack reboots the MCU
if (len > 0)
{
Buffer[len] = '\0';
CheckWhatSender(Udp.remoteIP().toString() , Buffer);
Serial.printf("UDP packet contents: %s\n", Buffer);
}}
if (bKlimaGetClient1 & bKlimaGetClient2)
{
bKlimaGetClient1 = false;
bKlimaGetClient2 = false;
LoopSetKlimaValue();
}
if (bKlimaTrigger)
{
Serial.print("Klima Trigger --> ");
Send_UDP_Beacon2Client1("#Deck#");
Send_UDP_Beacon2Client2("#Garten#");
bKlimaTrigger = false;
}
if (bSecondTrigger)
{
tft.setFont(&_comic8pt_);
StatusBar.SetTime(NewTime, OldTime);
bSecondTrigger = false;
}
if (bTriggerNTP)
{
Serial.println("Trigger NTP !!");
while ( getNTPtime(10, NewTime) == false)
{
delay(100);
Serial.println("-get NTP Zeit-");
}
bTriggerNTP = false;
}
if (bGotNTPData)
{
//PrintText(10,50,"Got NTP Data",ILI9341_LIGHTSALMON, ILI9341_DARKGREEN);
bGotNTPData = false;
}}
delay(10);
}
/*********************************************************************************
* @brief InitDHTSensors()
* @param none
* @return none
*********************************************************************************/
void InitDHTSensors()
{
dht.begin();
sensor_t sensor;
dht.temperature().getSensor(&sensor);
Serial.println("------------------------------------");
Serial.println("Temperature");
Serial.print ("Sensor: "); Serial.println(sensor.name);
Serial.print ("Driver Ver: "); Serial.println(sensor.version);
Serial.print ("Unique ID: "); Serial.println(sensor.sensor_id);
Serial.print ("Max Value: "); Serial.print(sensor.max_value); Serial.println(" *C");
Serial.print ("Min Value: "); Serial.print(sensor.min_value); Serial.println(" *C");
Serial.print ("Resolution: "); Serial.print(sensor.resolution); Serial.println(" *C");
Serial.println("------------------------------------");
// Print humidity sensor details.
dht.humidity().getSensor(&sensor);
Serial.println("------------------------------------");
Serial.println("Humidity");
Serial.print ("Sensor: "); Serial.println(sensor.name);
Serial.print ("Driver Ver: "); Serial.println(sensor.version);
Serial.print ("Unique ID: "); Serial.println(sensor.sensor_id);
Serial.print ("Max Value: "); Serial.print(sensor.max_value); Serial.println("%");
Serial.print ("Min Value: "); Serial.print(sensor.min_value); Serial.println("%");
Serial.print ("Resolution: "); Serial.print(sensor.resolution); Serial.println("%");
Serial.println("------------------------------------");
}
/*********************************************************************************
* @brief uint64ToString because standard function just work with uint32_t integer
* @param uint64_t input
* @return uint64_t as Text
*********************************************************************************/
String uint64ToString(uint64_t input)
{
String result = "";
uint8_t base = 10;
do {
char c = input % base;
input /= base;
if (c < 10)
c +='0';
else
c += 'A' - 10;
result = c + result;
} while (input);
return result;
}
/*********************************************************************************
* @brief LoopGetKlimaValue()
* @param none
* @return Kima Values
*********************************************************************************/
rKlimaServer LoopGetKlimaValue()
{
tm ZNeu;
vKlimaServer.Counter++ ;
Serial.print("KC---> "); Serial.print(vKlimaServer.Counter);
vKlimaServer.Zeit = NewTime;
sensors_event_t event;
dht.temperature().getEvent(&event);
if (isnan(event.temperature)) {
Serial.println("Error reading temperature!");
} else
vKlimaServer.Temperature1 = event.temperature;
dht.humidity().getEvent(&event);
if (isnan(event.relative_humidity)) {
Serial.println("Error reading Humidity!");
} else
vKlimaServer.Humidity1 = event.relative_humidity;
localtime_r(&NewTime, &ZNeu);
ZNeu.tm_year += 1900;
ZNeu.tm_mon -= 1;
localtime_r(&OldTime, &ZNeu);
ZNeu.tm_year += 1900;
itoa(ZNeu.tm_year,Buffer,10);
sYear = Buffer;
sMonth = strcpy(Buffer, caMonth[ZNeu.tm_mon]);
sMonth = Buffer;
return (vKlimaServer);
}
/*********************************************************************************
* @brief LoopGetKlimaValue()
* @param none
* @return none
*********************************************************************************/
void LoopSetKlimaValue()
{
vKlimaServer = LoopGetKlimaValue();

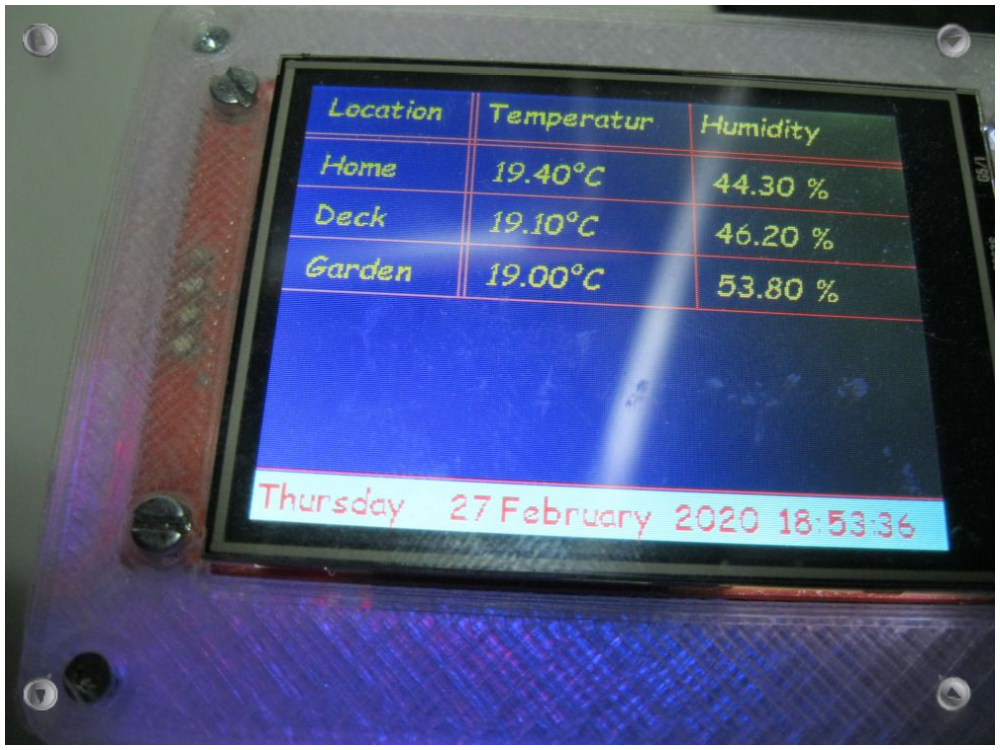

GridOutput.ColTextOut(Col2, Row2, vKlimaServer.Temperature1 ,'°','C');
GridOutput.ColTextOut(Col3, Row2, vKlimaServer.Humidity1 ,' ','%');
GridOutput.ColTextOut(Col2, Row3, vKlimaServer.Temperature2 ,'°','C');
GridOutput.ColTextOut(Col3, Row3, vKlimaServer.Humidity2 ,' ','%');
GridOutput.ColTextOut(Col2, Row4, vKlimaServer.Temperature3 ,'°','C');
GridOutput.ColTextOut(Col3, Row4, vKlimaServer.Humidity3 ,' ','%');
AddData(vKlimaServer);
}
void AjustArray()
{
for (int k = 0; k<KlimaCounter; k++)
aKlimaServer[k] = aKlimaServer[k+ 1];
}
/*********************************************************************************
* @brief AddData(rKlimaServer Value)
* @param rKlimaServer Record
* @return none
*********************************************************************************/
void AddData(rKlimaServer Value)
{
#ifdef DebugInfo
sprintf(Buffer, "[%d , %3.2f , %3.2f ], \n", Value.Counter, Value.Temperature, Value.Humidity);
Serial.print("++++++++++++++++++++++++++++++++++++++\n");
Serial.println(Buffer);
Serial.print("++++++++++++++++++++++++++++++++++++++\n");
#endif
if (KlimaCounter > MaxData) AjustArray();
aKlimaServer[KlimaCounter] = Value;
#ifdef DebugInfo
sprintf(Buffer, "[%d , %3.2f , %3.2f ], \n", aKlimaServer[99].Zeit, aKlimaServer[99].Temperature, aKlimaServer[99].Humidity);
Serial.print("#######################################\n");
Serial.println(Buffer);
Serial.print("########################################\n");
#endif
if (KlimaCounter < MaxData ) KlimaCounter++;
sData.clear();
for (int i = 0; i < KlimaCounter; i++)
{
uint64_t Time = aKlimaServer[i].Zeit;
Time = Time * 1000;
String TimeDummy = uint64ToString(Time);
sprintf(Buffer, "[new Date(%s) , %3.2f , %3.2f , %3.2f, %3.2f, %3.2f, %3.2f], \n", TimeDummy.c_str() , aKlimaServer[i].Temperature1, \
aKlimaServer[i].Humidity1, aKlimaServer[i].Temperature2, aKlimaServer[i].Humidity2, aKlimaServer[i].Temperature3, aKlimaServer[i].Humidity3 );
sData = sData + Buffer;
///Serial.println(sData); - // For Debugging purpose
}
#ifdef DebugInfo
Serial.print("***************************************\n");
Serial.println(sData);
Serial.print("---------------------------------------\n");
#endif
SendFireBaseData( Value );
}
/*********************************************************************************

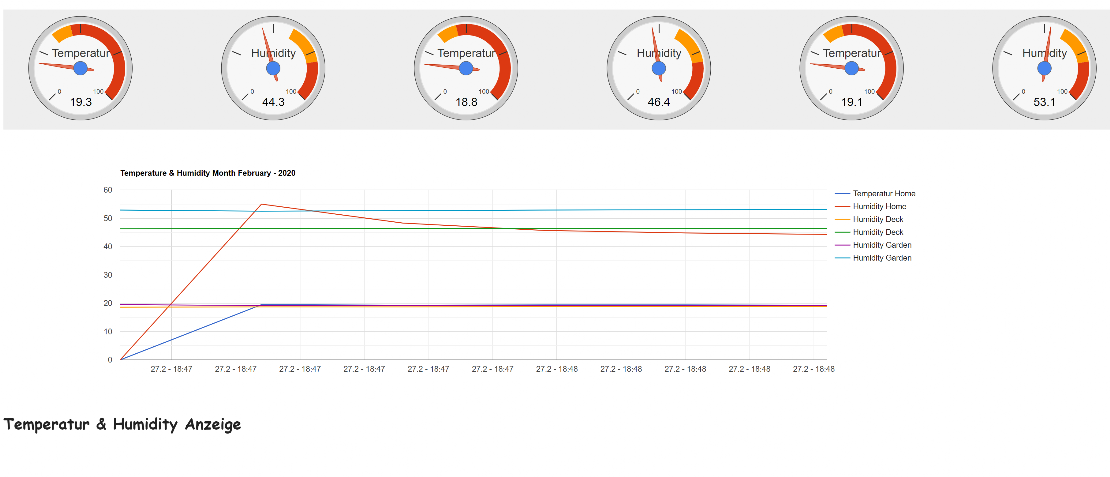

* @brief HTML_Processor(const String& var) For the HTML Webpage Values
* @param rKlimaServer Record
* @return String
*********************************************************************************/
String HTML_Processor(const String& var)
{
String Status;
float fStatus = 0.00;
bool bFloat = false;
Serial.print("------> "); Serial.println(var);
if(var == "data"){
Status = sData;
}
else
if(var == "MONTH"){
Status = sMonth;
}
else
if(var == "YEAR"){
Status = sYear;
}
else
if(var == "TEMPERATURE1"){
fStatus = vKlimaServer.Temperature1;
bFloat = true;
}
else
if(var == "HUMIDITY1"){
fStatus = vKlimaServer.Humidity1;
bFloat = true;
}
else
if(var == "TEMPERATURE2"){
fStatus = vKlimaServer.Temperature2;
bFloat = true;
}
else
if(var == "HUMIDITY2"){
fStatus = vKlimaServer.Humidity2;
bFloat = true;
}
else
if(var == "TEMPERATURE3"){
fStatus = vKlimaServer.Temperature3;
bFloat = true;
}
else
if(var == "HUMIDITY3"){
fStatus = vKlimaServer.Humidity3;
bFloat = true;
}
if (bFloat){
dtostrf(fStatus, 3, 2, Buffer);
Status = Buffer;
}
return Status;
}
/*********************************************************************************
* @brief InitOTA()
* @param none
* @return none
*********************************************************************************/
void InitOTA()
{
// OTA Configuration *************************************************
/* create a connection at port 3232 */
ArduinoOTA.setPort(3232);
/* we use mDNS instead of IP of ESP32 directly */
ArduinoOTA.setHostname("ESP32-Power-Consumption");
/* we set password for updating */
ArduinoOTA.setPassword(OTA_PASS);
Serial.print(OTA_PASS);
/* this callback function will be invoked when updating start */
ArduinoOTA.onStart([]() {
Serial.println("Start updating");
});
/* this callback function will be invoked when updating end */
ArduinoOTA.onEnd([]() {
Serial.println("\nEnd updating");
});
/* this callback function will be invoked when a number of chunks of software was flashed
so we can use it to calculate the progress of flashing */
ArduinoOTA.onProgress([](unsigned int progress, unsigned int total) {
Serial.printf("Progress: %u%%\r", (progress / (total / 100)));
});
ArduinoOTA.onError([](ota_error_t error) {
Serial.printf("Error[%u]: ", error);
if (error == OTA_AUTH_ERROR) Serial.println("Auth Failed");
else if (error == OTA_BEGIN_ERROR) Serial.println("Begin Failed");
else if (error == OTA_CONNECT_ERROR) Serial.println("Connect Failed");
else if (error == OTA_RECEIVE_ERROR) Serial.println("Receive Failed");
else if (error == OTA_END_ERROR) Serial.println("End Failed");
});
/* start updating */
ArduinoOTA.begin();
Serial.println("****************************** Arduino Ota Start ***********************************");
}
/*********************************************************************************
* @brief InitILI9341() Init ILI9341 Graphic
* @param none
* @return none
*********************************************************************************/
void InitILI9341()
{
Serial.print("****** TFT Mode ******");
tft.begin();
// read diagnostics (optional but can help debug problems)
tft.begin();
pinMode(TFT_LED, OUTPUT);
digitalWrite(TFT_LED, HIGH);
// read diagnostics (optional but can help debug problems)
uint8_t x = tft.readcommand8(ILI9341_RDMODE);
Serial.print("Display Power Mode: 0x"); Serial.println(x, HEX);
x = tft.readcommand8(ILI9341_RDMADCTL);
Serial.print("MADCTL Mode: 0x"); Serial.println(x, HEX);
x = tft.readcommand8(ILI9341_RDPIXFMT);
Serial.print("Pixel Format: 0x"); Serial.println(x, HEX);
x = tft.readcommand8(ILI9341_RDIMGFMT);
Serial.print("Image Format: 0x"); Serial.println(x, HEX);
x = tft.readcommand8(ILI9341_RDSELFDIAG);
Serial.print("Self Diagnostic: 0x"); Serial.println(x, HEX);
tft.setRotation(1); // Set ILI9341 to Landscape
tft.fillScreen(ILI9341_NAVY);
tft.setTextWrap(false);
tft.setRotation(1); // horizontal display - in this App it's a "MUST"
}
/*********************************************************************************
* @brief InitGridOutPut()
* @param none
* @return none
*********************************************************************************/
void InitGridOutPut()
{
Serial.print("------------ InitGridOutPut --------------");
GridOutput.init(&tft, ILI9341_GOLD, ILI9341_NAVY, ILI9341_SALMON) ;
strcpy(Buffer, "Location");
GridOutput.ColTextOut(Col1, Row1, Buffer,0,0 );
strcpy(Buffer, "Temperatur");
GridOutput.ColTextOut(Col2, Row1, Buffer,0,0);
strcpy(Buffer, "Humidity");
GridOutput.ColTextOut(Col3, Row1, Buffer,0,0);
strcpy(Buffer, "Home");
GridOutput.ColTextOut(Col1, Row2, Buffer,0,0);
strcpy(Buffer, "Deck");
GridOutput.ColTextOut(Col1, Row3, Buffer,0,0);
strcpy(Buffer, "Garden");
GridOutput.ColTextOut(Col1, Row4, Buffer,0,0);
}
/*********************************************************************************
* @brief feedTheDog() Prevent a Brown out Reset
* @param none
* @return none
*********************************************************************************/
void feedTheDog()
{
// feed dog 0
TIMERG0.wdt_wprotect=TIMG_WDT_WKEY_VALUE; // write enable
TIMERG0.wdt_feed=1; // feed dog
TIMERG0.wdt_wprotect=0; // write protect
// feed dog 1
TIMERG1.wdt_wprotect=TIMG_WDT_WKEY_VALUE; // write enable
TIMERG1.wdt_feed=1; // feed dog
TIMERG1.wdt_wprotect=0; // write protect
}
/*********************************************************************************
* @brief InitTimer1()
* @param none
* @return none
*********************************************************************************/
void InitTimer1()
{
// Inalize Timer
timer1 = timerBegin(1, 80, true);
Serial.println("Timer 1******");
// Attach onTimer function to our timer
timerAttachInterrupt(timer1, &ontimer1, true);
// Set alarm to call onTimer function every second 1 tick is 1us
// => 1 second is 1000000us
// Repeat the alarm (third parameter)
timerAlarmWrite(timer1, 1000000, true);
timerAlarmEnable(timer1);
}
/*********************************************************************************
* @brief InitTimer0()
* @param none
* @return none
*********************************************************************************/
void InitTimer0()
{
// Inalize Timer
timer0 = timerBegin(0, 80, true);
Serial.println("Timer 0******");
// Attach onTimer function to our timer
timerAttachInterrupt(timer0, &ontimer0, true);
// Set alarm to call onTimer function every second 1 tick is 1us
// => 1 second is 1000000us
// Repeat the alarm (third parameter)
timerAlarmWrite(timer0, 1000000, true);
timerAlarmEnable(timer0);
}
/*********************************************************************************
* @brief void IRAM_ATTR ontimer1()
* @param none
* @return none
*********************************************************************************/
void IRAM_ATTR ontimer1()
{
OldTime = NewTime;
NewTime++;
bSecondTrigger = true;
//Every 15 Minutes send Values to HTML and FirebaseServer
if (TriggerKlimaCounter++ > /* 10 * */ 20) //
{
TriggerKlimaCounter = 0;
bKlimaTrigger = true;
}}
/*********************************************************************************
* @brief void IRAM_ATTR ontimer0()
* @param none
* @return none
*********************************************************************************/
void IRAM_ATTR ontimer0()
{
if (TriggerNTPCounter++ > 60 * 10) // every 10 Minutes Get NTP Datas
{
TriggerNTPCounter = 0;
bTriggerNTP = true;
}
}
/*********************************************************************************
* @brief SetupNTP()
* @param none
* @return none
*********************************************************************************/
void SetupNTP()
{
SetNTP_SERVER();
if (getNTPtime(10,NewTime))
{
bGotNTPData = true;
}
else
bGotNTPData = false;
}
/*********************************************************************************
* @brief connectToWiFi
* @param none
* @return none
*********************************************************************************/
void connectToWiFi(const char * ssid, const char * pwd)
{
Serial.printf(Buffer, "Connecting to WiFi network : %s", ssid);
// delete old config
WiFi.disconnect(true);
//register event handler
WiFi.onEvent(WiFiEvent);
//Initiate connection
WiFi.begin(ssid, pwd);
WiFi.setHostname("ESP32_NTP_Klima");
}
/*********************************************************************************
* @brief WiFiEvent(system_event_id_t event)
* @param WiFi Event
* @return none
*********************************************************************************/
void WiFiEvent(system_event_id_t event)
{
Serial.print("event ");
Serial.print(event);
switch (event)
{
case SYSTEM_EVENT_WIFI_READY:
Serial.print("Wifi Ready");
break;
case SYSTEM_EVENT_STA_START:
Serial.print("Wifi Event Start");
break;
case SYSTEM_EVENT_STA_STOP:
Serial.print("Wifi Event Stop");
break;
case SYSTEM_EVENT_STA_CONNECTED:
{
bWiFiConnected = true;
strcpy(Buffer, "WiFi Connected");
//GridOutput.RowTextOut(Row4, Buffer, '\0', '\0');
}
break;
case SYSTEM_EVENT_STA_DISCONNECTED:
{
bWiFiConnected = false;
strcpy(Buffer, "WiFi Disconnected");
//GridOutput.RowTextOut(Row4, Buffer, '\0', '\0');
}
break;
case SYSTEM_EVENT_STA_GOT_IP:
Serial.println(WiFi.localIP());
//udp.begin(WiFi.localIP(),UDP_PORT);
strcpy(Buffer, "Got IP Address");
//GridOutput.RowTextOut(Row4, Buffer, '\0', '\0');
bWiFiConnected = true;
break;
case SYSTEM_EVENT_STA_LOST_IP:
strcpy(Buffer, "Wifi lost IP");
//GridOutput.RowTextOut(Row4, Buffer, '\0', '\0');
Serial.print("Wifi lost IP");
bWiFiConnected = false;
break;
default:
Serial.print("Not recognized Wifi Event ");
}}
/*********************************************************************************
* @brief PrintText(uint16_t X, uint16_t Y, const char* Text, uint16_t Color, uint16_t EraseColor)
* @param To Print a Text on the LCD screen
* @return none
*********************************************************************************/
void PrintText(uint16_t X, uint16_t Y, const char* Text, uint16_t Color, uint16_t EraseColor)
{
tft.fillRect(X-10, Y-12, 200, 16, EraseColor);
tft.setTextColor(Color);
tft.setCursor(X, Y);
tft.print(Text);
}
/*********************************************************************************
* @brief SendFireBaseData(void)
* @param none
* @return none
*********************************************************************************/
void SendFireBaseData(rKlimaServer Value)
{
String S;
String SItem;
String Folder = "Error";
/////////////// Temperature ////////////////////////////////
sprintf(Buffer, "Item%d", Value.Counter);
String Item = Buffer;
if (Firebase.setDouble(firebaseData,Folder + "/Temperature/" + Item, Value.Temperature1))
{
Serial.println("PASSED");
Serial.println("PATH: " + firebaseData.dataPath());
Serial.print("PUSH NAME: ");
Serial.println(firebaseData.pushName());
}
else
{
Serial.println("Array Failed");
}
/////////////// Humidity ////////////////////////////////
if (Firebase.setDouble(firebaseData,Folder + "/Humidity/" + Item, Value.Humidity1))
{
Serial.println("PASSED");
Serial.println("PATH: " + firebaseData.dataPath());
Serial.print("PUSH NAME: ");
Serial.println(firebaseData.pushName());
}
else
{
Serial.println("Array Failed");
}
if (Firebase.setInt(firebaseData,Folder +"/Timestamp/" + Item, Value.Zeit))
{
Serial.println("PASSED");
Serial.println("PATH: " + firebaseData.dataPath());
Serial.print("PUSH NAME: ");
Serial.println(firebaseData.pushName());
}
else
{
Serial.println("Array Failed");
}}
/*********************************************************************************
@brief Receiver Float from my two Satallites
@param Text Float Data a "C" String
@return none
*********************************************************************************/
rKlimaLocation GetFloatValues(char Text[])
{
rKlimaLocation Result;
int a = -1;
char sFloat1[30] = {0};
int c = -1;
char sFloat2[30] = {0};
bool b = false;
int l = strlen(Text);
int i;
for (i = 0; i < l; i++)
{
if (Text[i] == '<') {
b = false;
break;
}
if (Text[i] == '>')
b = true;
if (b)
sFloat1[a++] = Text[i];
}
int Merker = i;
Merker++;
for (i = Merker; i < l; i++)
{
if (Text[i] == '<') {
b = false;
break;
}
if (Text[i] == '>')
b = true;
if (b)
sFloat2[c++] = Text[i];
}
Result.Temperature = atof(sFloat1);
Result.Humidity = atof(sFloat2);
Serial.printf ("\nATOF %f - %f end atof\n\n", Result.Temperature, Result.Humidity );
return (Result);
}
/*********************************************************************************
@brief SendUDPPackets
@param IP Address
@param Port
@param Value Text to send
@return none
*********************************************************************************/
void SendUDPPackets(const IPAddress Adr, uint16_t Port,const String Value )
{
Udp.beginPacket(Adr, Port );
Udp.print(Value);
Udp.endPacket();
Serial.print("~");
}
/*********************************************************************************
@brief Send_UDP_Beacon2Client1(const char Msg[]) Handshake to Client 1
@param Msg Message to client Not neccecary we use IP Address for recocnition
@return none
*********************************************************************************/
void Send_UDP_Beacon2Client1(const char Msg[])
{
SendUDPPackets(IPAddress((192), (168), (1), (50) ), 1234, "Ola");
Serial.println("Send Client 1");
}
/*********************************************************************************
@brief Send_UDP_Beacon2Client2(const char Msg[]) Handshake to Client 2
@param Msg Message to client Not neccecary we use IP Address for recocnition
@return none
*********************************************************************************/
void Send_UDP_Beacon2Client2(const char Msg[])
{
SendUDPPackets(IPAddress((192), (168), (1), (51) ), 1234, "Hallo");
Serial.println("Send Client 2");
}
/*********************************************************************************
@brief CheckWhatSender(String IPAdr,String Value) Dispatch received Values
@param IPAdr IP Address
@param Value coded like ->76.65<-->24.87<-
@return none
*********************************************************************************/
void CheckWhatSender(String IPAdr,String Value)
{
rKlimaLocation Result;
if (IPAdr == "192.168.1.50")
{
strcpy(Buffer,Value.c_str());
Result = GetFloatValues(Buffer);
vKlimaServer.Temperature2 = Result.Temperature;
vKlimaServer.Humidity2 = Result.Humidity;
bKlimaGetClient1 = true;
}
if (IPAdr == "192.168.1.51")
{
strcpy(Buffer,Value.c_str());
Result = GetFloatValues(Buffer);
vKlimaServer.Temperature3 = Result.Temperature;
vKlimaServer.Humidity3 = Result.Humidity;
bKlimaGetClient2 = true;
}
Serial.printf("Klienten > %d - %d", bKlimaGetClient1 , bKlimaGetClient2 );
}
Hello, for Download the Projekt Files check out my Github Publication
